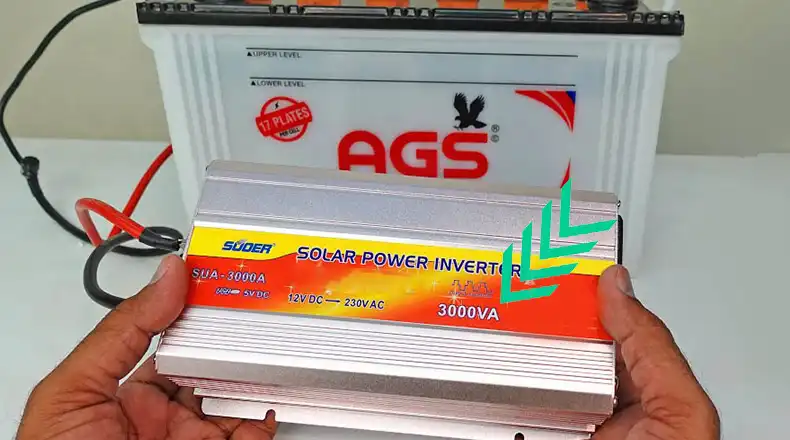

[Explained] What Size Fuse for 3000 Watt Amp for Solar Inverter?

The battery bank’s voltage determines what size fuse is required for a 3000-watt amp. You must consider the features and specifications of both the amp and the inverter to choose the proper fuse size for a 3000-watt (3 kW) amp linked to a solar inverter. Then what is the suitable fuse size for 3000 watt amp solar inverter?

You’ll need a 175-225 Amp fuse or circuit breaker to power a 3000 Watt inverter off of a 24V battery bank. You’ll need a 90-110 Amp fuse or circuit breaker if the battery bank has a 48V rating.

Now we are explained the factors that may help you to determine the fuse size.

Considerable Factors to Choose Fuse Size for 3000 Watt Amp for Solar Inverter

It’s crucial to safeguard against overloads and surges when using a 3000-watt amp. A fuse can be used in this situation. A safety mechanism called a fuse will trip if the current reaches a specified limit. This will guard against harm to the amplifier.

1. Battery Bank Voltage

The battery bank’s voltage determines what size fuse is required for a 3000-watt amp. You’ll need more than a 250 amp fuse if the battery bank is 12 volts. A 175 amp fuse is required if the battery bank has a voltage of 24 volts. You’ll need a 90-amp fuse if the battery bank is 48 volts. Utilizing the following formula, you may determine the size of fuse you require.

Voltage x Amperage = Wattage

Therefore, you would use the following calculation for a 3000-watt inverter powered by a 12-volt battery bank:

3000 watts / 12 volts = 250 amps

In this way, 3000 watts / 24 volts = 125 amps

And, 3000 watts / 48 volts = 62.5 amps

2. Maximum Amperage of the Inverter

It’s crucial to remember that the fuse should always be sized slightly larger than the inverter’s maximum amperage. To prevent the fuse from blowing in the event of a surge in current, this is done. As a general guideline, the size of the fuse should be at least 25% bigger than the inverter’s maximum amperage.

So, the minimum recommended size for 12 volts is, 25% larger than 250 amps which is 312.5 amps. The minimum recommended size for 24 volts is 25% larger than 125 amps which is 156.25 amps and for 48 volts, 78.125 amps.

3. Fuse Type

There are various fuse types, each with a different amperage rating. A slow-blow fuse, for instance, will permit a greater current surge than a fast-blow fuse.

4. Environmental Attribute

To account for the increased resistance of the wires in a hostile environment where the fuse will be utilized, such as one that is hot or humid, the amperage may need to be adjusted.

Where Should the 3000-Watt Amp Fuse Be Installed?

The placement of the fuse should be both secure and convenient. Make sure the fuse is not exposed to an excessive amount of heat or moisture.

Conclusion

The voltage of the battery bank, the maximum amperage of the inverter, the type of fuse, and the area in which the fuse will be utilized determine the size of the fuse you need for a 3000-watt amp. The manufacturer’s requirements should be consulted to choose the proper size fuse for your 3000-watt amp.
