Thunderbolt Solar Charge Controller Error Codes | Reasons and Solutions

In our quest for cleaner and more sustainable energy solutions, solar power has emerged as a prominent choice. Solar charge controllers play a vital role in managing and optimizing the energy harnessed from the sun. However, like any technology, they may encounter issues. This article will show the Thunderbolt Solar Charge Controller error codes, helping you understand and troubleshoot these problems effectively.

Basic Introduction to Solar Charge Controller

A Solar Charge Controller is a crucial component in a solar power system that regulates the flow of electricity from your solar panels to the battery and prevents overcharging. You can find different types of solar charge controllers available out there, such as PWM and MPPT. It’s better to understand their functionality and how error codes might vary between them.

Troubleshooting Thunderbolt Solar Charge Controller Errors

When you encounter error codes on your Thunderbolt Solar Charge Controller, it’s essential to troubleshoot the issues promptly. Effective troubleshooting can help identify and resolve problems, ensuring your solar power system operates smoothly. Here’s how to do that –

Error Code E01: Battery under voltage

Diagnosis: Check the battery voltage with a multimeter. If it’s below the acceptable threshold, the error code is accurate.

Solution:

• Inspect the battery’s condition and replace it if needed.
• Ensure proper connections and wiring.

Error Code E02: Battery over voltage

Diagnosis: Verify the battery voltage with a multimeter. If it’s excessively high, the error is valid.

Solution:

• Examine the charge controller for malfunctions.
• Inspect the voltage regulator.
• Ensure proper wiring and connections.

Error Code E03: Battery reverse polarity

Diagnosis: If you connected the battery terminals incorrectly, this error code will appear.

Solution:

• Disconnect the battery and reconnect it with the correct polarity (positive to positive, negative to negative).

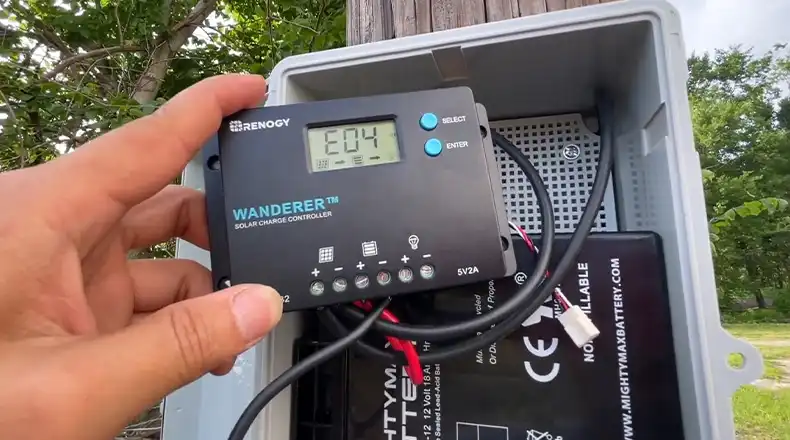

Error Code E04: Solar panel over voltage

Diagnosis: Check the solar panel voltage with a multimeter. If it exceeds safe levels, the error is valid.

Solution:

• Examine the charge controller for malfunctions.
• Verify solar panel specifications and replace components if necessary.

Error Code E05: Solar panel reverse polarity

Diagnosis: If the solar panels are wired with incorrect polarity, this error will occur.

Solution:

• Disconnect and reconnect the solar panels with the proper polarity.

Error Code E06: Controller over temperature

Diagnosis: If the charge controller is running excessively hot, this error will trigger.

Solution:

• Ensure proper ventilation for the charge controller.
• Relocate it to a cooler spot if necessary.

Error Code E07: Controller internal fault

Diagnosis: This error indicates an internal issue within the controller.

Solution:

• Contact the manufacturer or a qualified technician for assistance.

Common Thunderbolt Solar Charge Controller Error Codes

The following are the error codes for Thunderbolt solar charge controllers –

Error Code E01: Battery Under Voltage

This error indicates that the battery voltage is below the acceptable threshold. When the battery voltage is too low, it can damage the battery and affect system performance. The most common causes include aging batteries, a malfunctioning solar panel, or a problem with the charging circuit. To resolve this error, you should check the battery’s condition, ensure proper connections, and replace the battery if needed.

Error Code E02: Battery Over Voltage

When the battery voltage is too high, this error code appears. Excessive voltage can be harmful to the battery and other system components. Overvoltage errors often occur due to a malfunctioning charge controller or a faulty voltage regulator. To address this issue, you should inspect the charge controller, regulator, and wiring to ensure they are functioning correctly.

Error Code E03: Battery Reverse Polarity

This error warns that the battery is connected in reverse, which can be a critical safety concern. Reverse polarity occurs when the positive and negative terminals are connected incorrectly. Reversing the battery’s polarity can damage the charge controller and other system components. To fix this error, you must disconnect and reconnect the battery with the correct polarity, ensuring positive connects to positive and negative to negative.

Error Code E04: Solar panel Over Voltage

An overvoltage error signals that the voltage from the solar panels exceeds safe levels. This can damage the charge controller and the battery. Overvoltage issues are often related to a faulty charge controller or mismatched solar panels. To rectify this problem, you should inspect the charge controller, check the solar panel specifications, and replace any components if necessary.

Error Code E05: Solar Panel Reverse Polarity

If your solar panels are connected in reverse, this error code will help you identify and fix the issue. Solar panel reverse polarity can occur due to incorrect wiring. To resolve it, you need to disconnect and reconnect the solar panels correctly, ensuring proper polarity.

Error Code E06: Controller Over Temperature

An over-temperature error indicates that the charge controller is running too hot, which can affect its efficiency and lifespan. Overheating can result from poor ventilation or high ambient temperatures. To address this error, ensure proper ventilation for the charge controller and relocate it to a cooler spot if necessary.

Error Code E07: Controller Internal Fault

When the controller detects an internal fault, this error code is triggered. Internal faults can be caused by manufacturing defects or wear and tear over time. Unfortunately, internal faults are often beyond user repair. In such cases, it’s best to contact the manufacturer or a qualified technician for assistance.

When to Seek Professional Help

While many Thunderbolt Solar Charge Controller errors can be resolved through troubleshooting, some issues may require professional intervention –

Complex Internal Faults: If the controller reports an internal fault (E07) and DIY efforts don’t resolve it, consult a technician familiar with your controller model.

Warranty Repairs: If your system is under warranty, contact the manufacturer or an authorized service provider for assistance with error codes.

Wiring and Electrical Issues: If errors persist and seem related to the electrical system, consult a licensed electrician for inspection and repair.

Safety Concerns: If you encounter any issues related to electrical safety, such as sparking or unusual heat, turn off the system immediately and contact a professional electrician.

End Note

Understanding Thunderbolt Solar Charge Controller error codes is vital for maintaining a smooth solar power system. With this knowledge, you can ensure your solar setup runs efficiently, harnessing the power of the sun without any hiccups.

Relevant Questions with Answers

1. Can Thunderbolt Solar Charge Controller error codes be reset by the user?

Some errors can be reset by following the manufacturer’s instructions, but others may require professional assistance.

2. How can I prevent Thunderbolt Solar Charge Controller errors?

Regular maintenance and monitoring of your solar system can help prevent many common errors.

3. Are Thunderbolt Solar Charge Controllers user-friendly for DIY troubleshooting?

Basic troubleshooting can be done by the user, but for complex issues, it’s recommended to consult a professional.

4. Can these error codes vary between different Thunderbolt Solar Charge Controller models?

Yes, error codes can vary between models, so always refer to your user manual for specific information.
